1851/1861 Loading Port Template

1851/1861 Loading Port Template

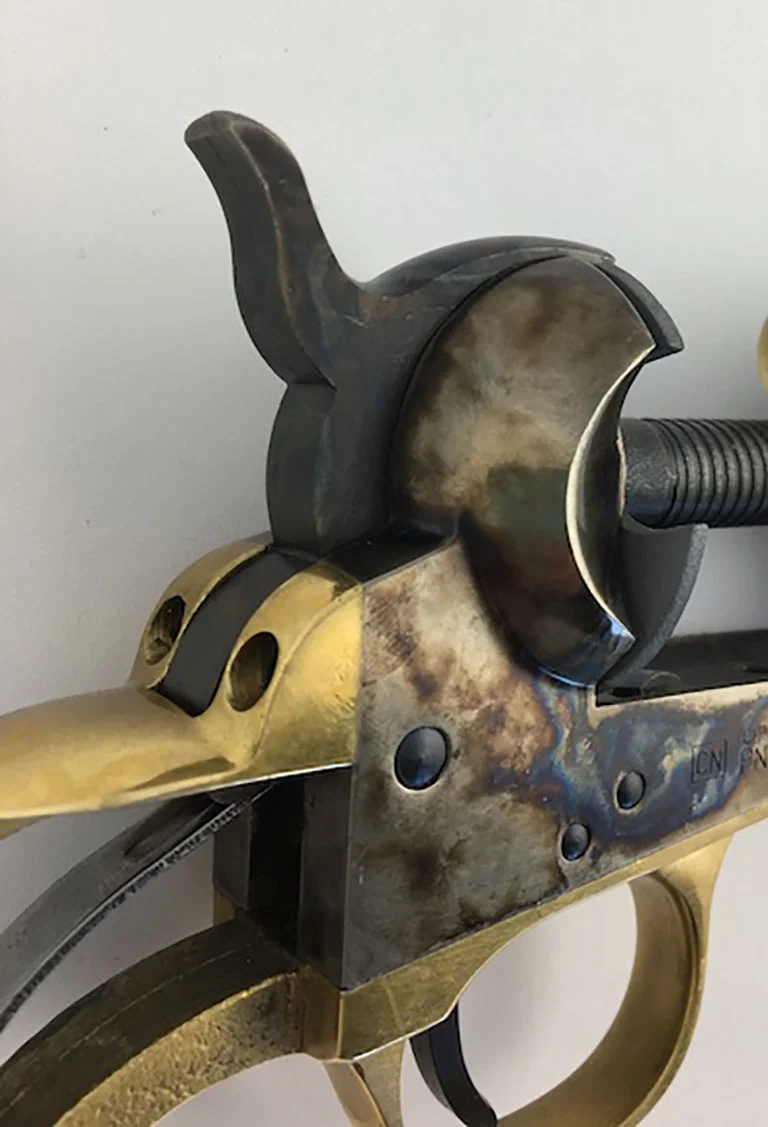

The 51/61 Loading Port Template will take the guesswork out of modifying your frame.

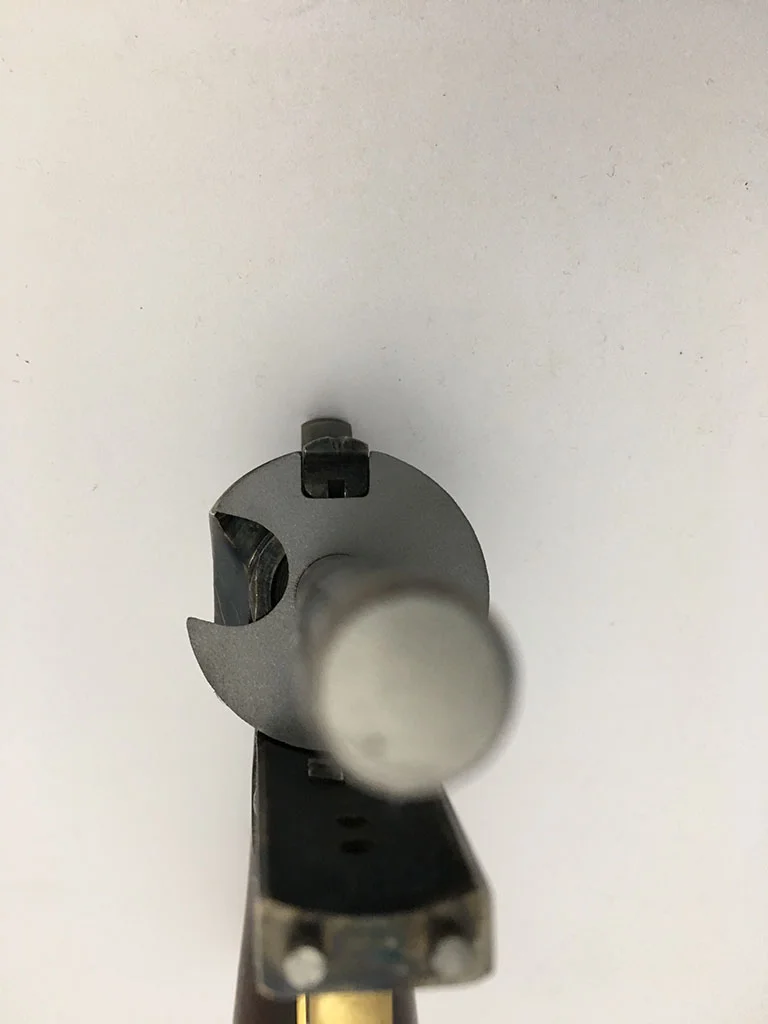

Use the loading port template to mark the frame where the port will be cut. A Dremel tool with a coarse sanding drum or a grinding stone of 3/8 inch diameter can be used to rough cut the port.  Grind slowly and do not allow the frame to get hot.  Grind a “U” shape slot. Finish by hand sanding with fine grit emery cloth.  You can then cold-blue the port.

Loading port template for Gated Conversion Kit

  • Compatible: Pietta/Uberti 1851/1861 Navy .36
Add To Cart
